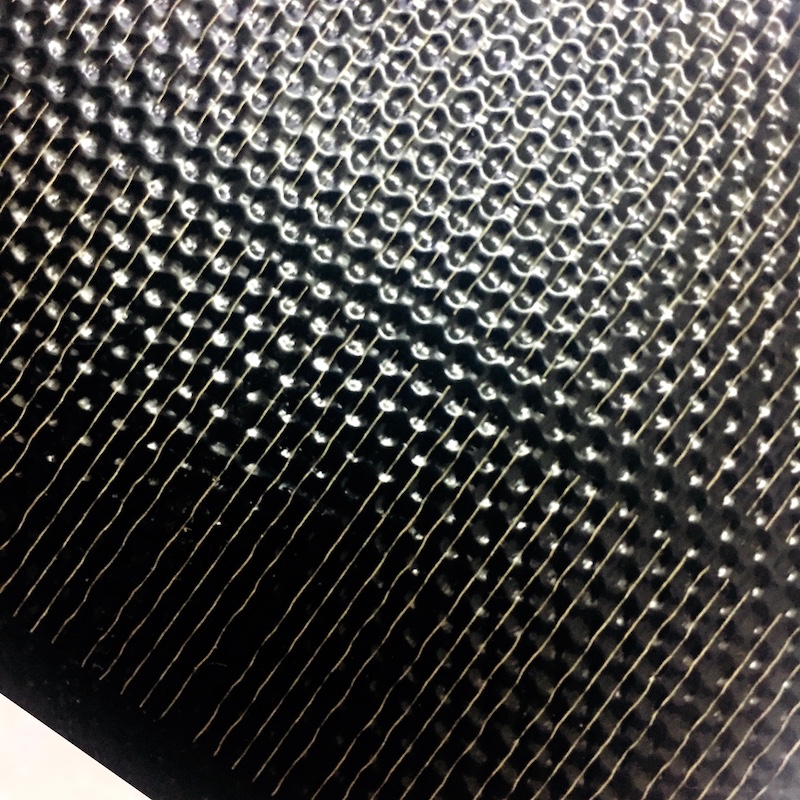

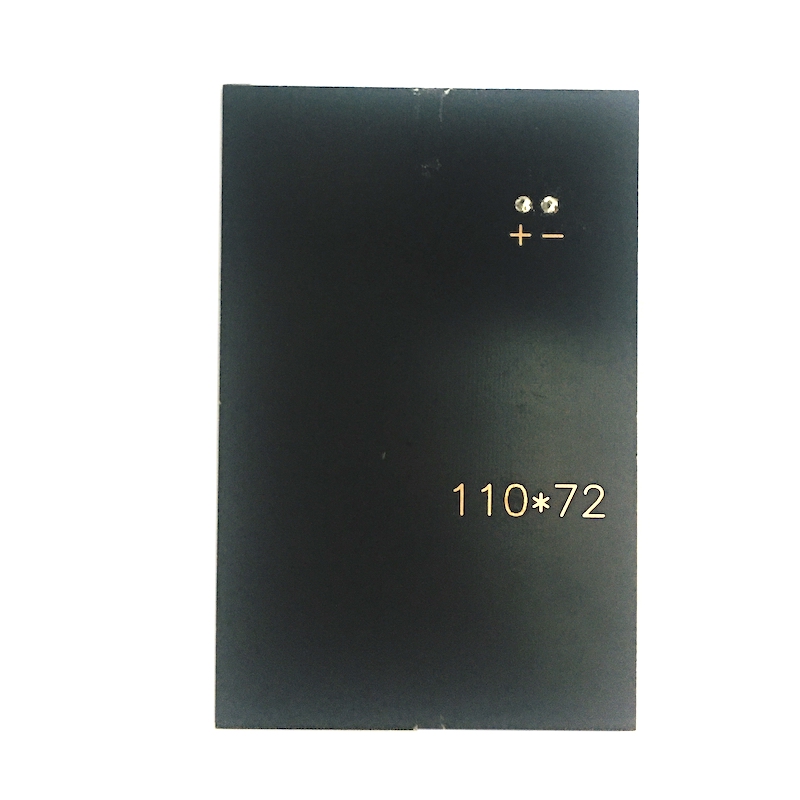

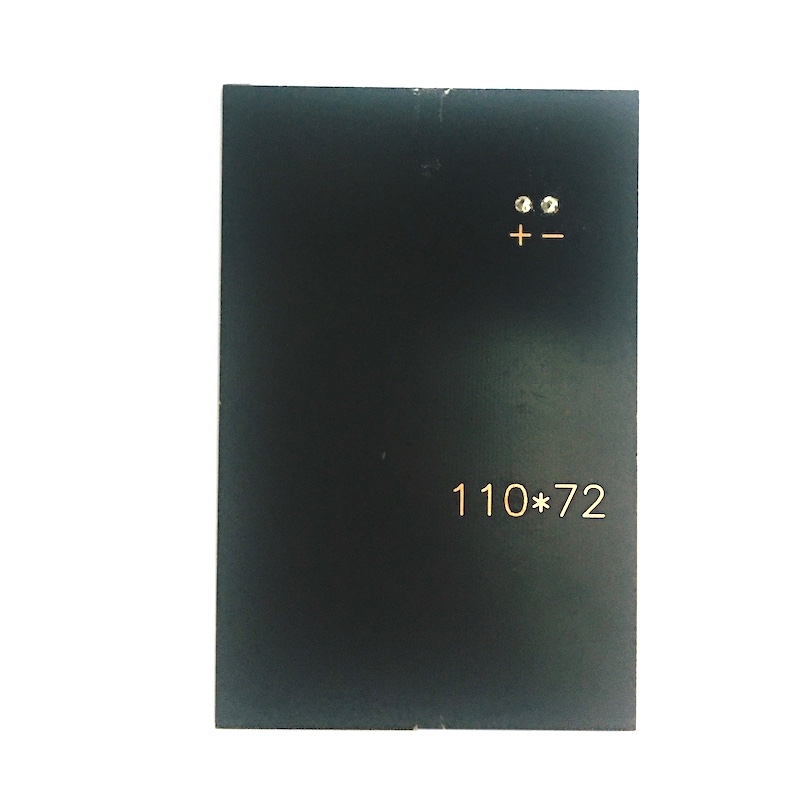

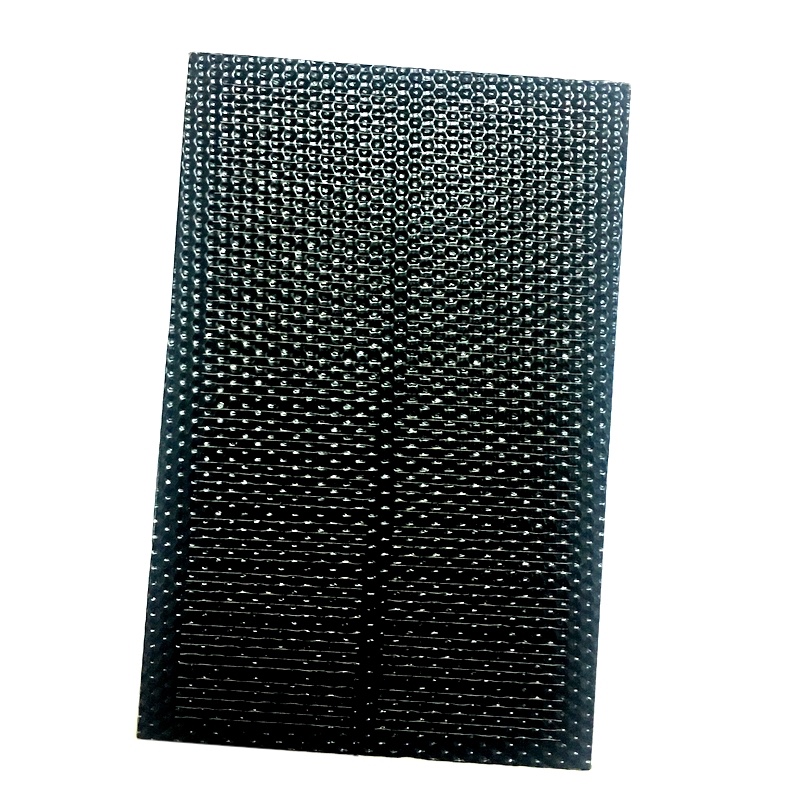

110x72mm ETFE 6V mono solar panel for electronic toys small solar panel
HIGHLIGHTS:
Impact resistance
Economical
High Strength with FiberGlass material FR-4
High electrical insulation
Attractive customizeable appearance
| Material: | Monocrystalline sillicon, FR-4 PCB, ETFE lamination, 110x72mm | |
| Peak power: | 1.2W | |
| Max voltage: | 6.0V | |
| Max current: | 200mA | |
| Open voltage: | 7.2V | |
| Short current: | 230mA | |
| Weight: | 18G | |
| Operating temperature | -40°C to +85°C | |
| Maximum system voltage | 1000VDC | |
| NOCT | 48°C+/-2°C | |
| Current temperature coefficient | %/K | 0.06+/-0.01 |
| Voltage temperature coefficient | mV/K | -(78+/-10) |
| Power temperature coefficient | %/K | -(0.5+/-0.05) |
