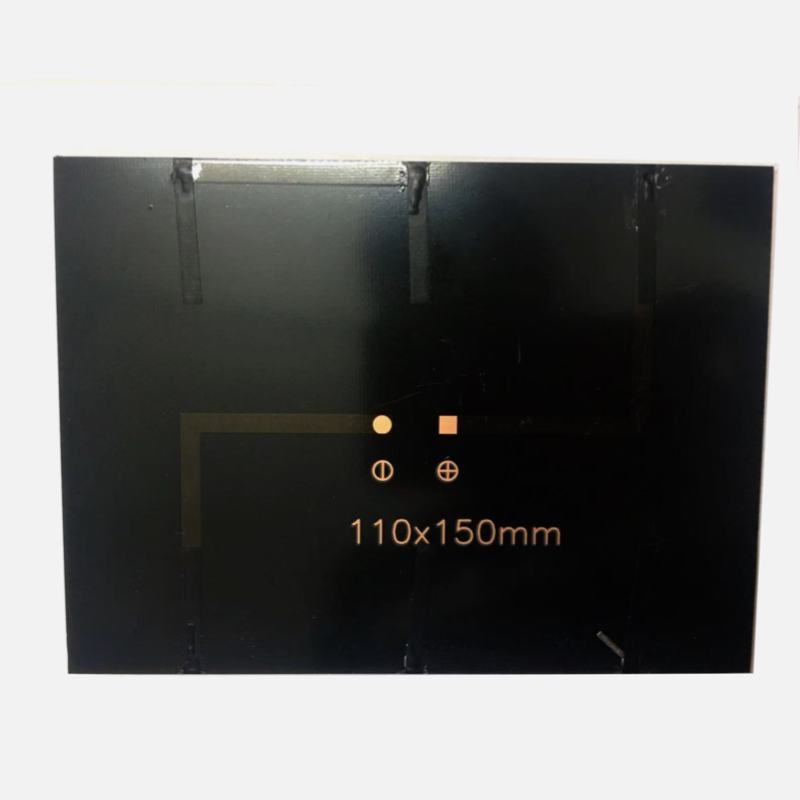

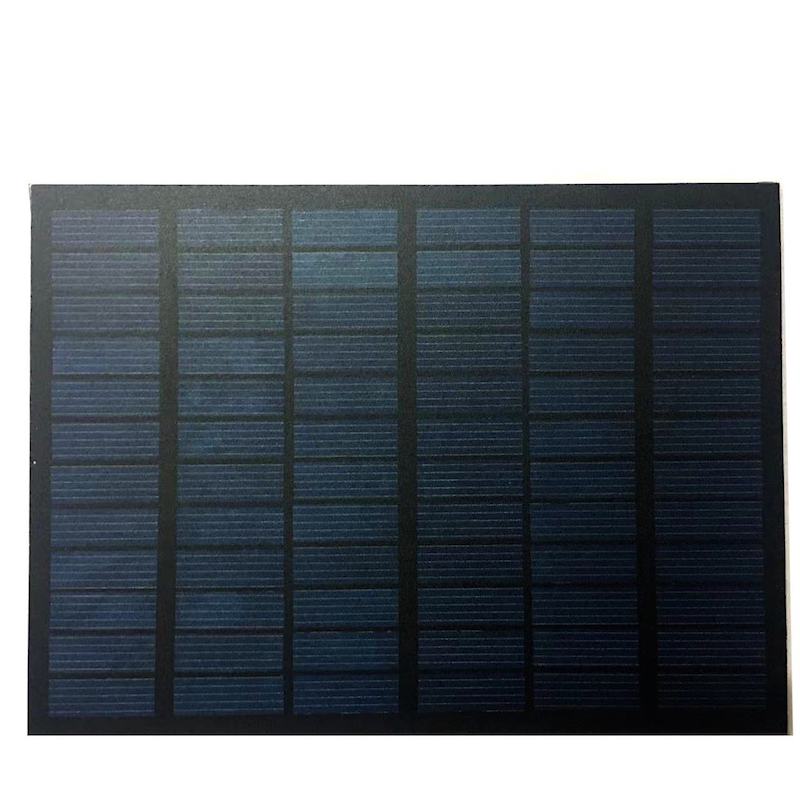

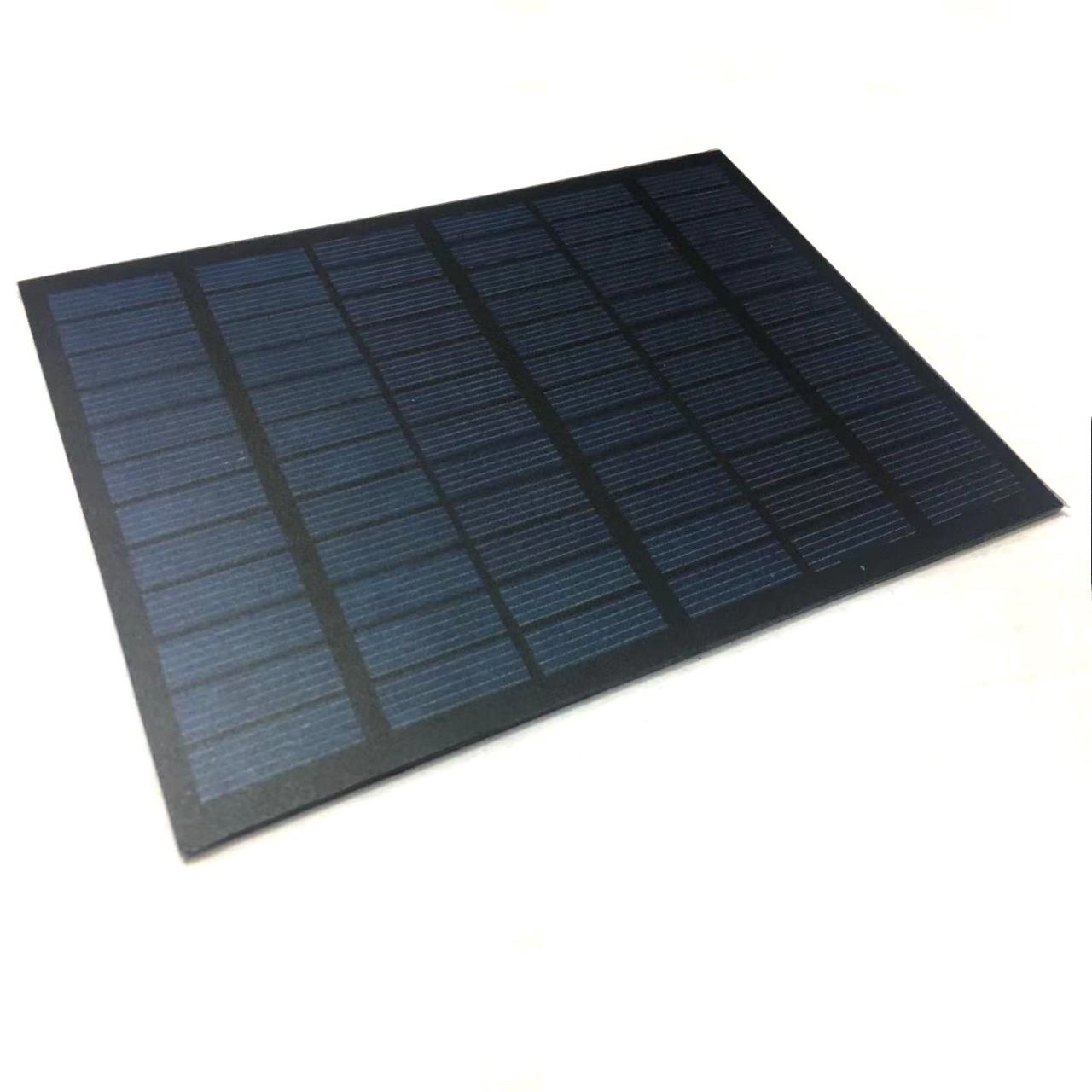

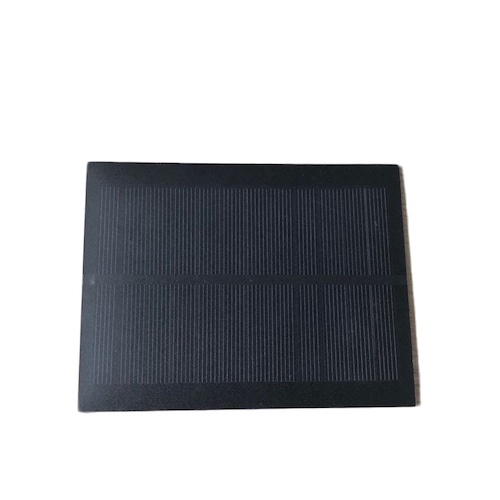

110x150mm 18V PET Monocrystalline Solar Panel Mini Panel Solar Small
HIGHLIGHTS:
Impact resistance
Economical
High Strength with FiberGlass material FR-4
High electrical insulation
Attractive customizeable appearance
| Material: | Polycrystalline sillicon, FR-4 PCB, epoxy resin 110x150mm | |
| Peak power: | 2.6W | |
| Max voltage: | 18.0V | |
| Max current: | 145mA | |
| Open voltage: | 21.6V | |
| Short current: | 156mA | |
| Weight: | 26G | |
| Operating temperature | -40°C to +85°C | |
| Maximum system voltage | 1000VDC | |
| NOCT | 48°C+/-2°C | |
| Current temperature coefficient | %/K | 0.06+/-0.01 |
| Voltage temperature coefficient | mV/K | -(78+/-10) |
| Power temperature coefficient | %/K | -(0.5+/-0.05) |
